VALUE 2-way manifold gauge set with 3×120 cm hoses for R134a, R404A, R407C, and R22, 7023-00

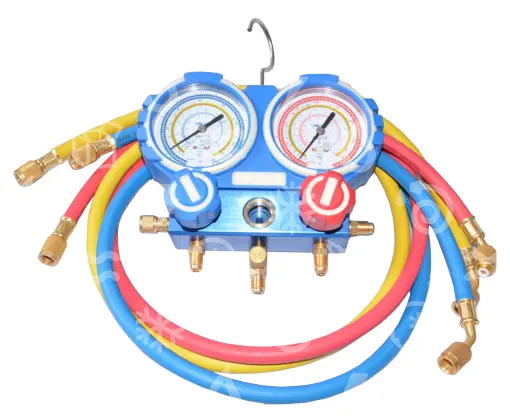

The VALUE manifold gauge set is a 2-way service manifold intended for refrigeration and air conditioning systems. According to the datasheet, the VMG-2-R22 version is designed for refrigerants R404A, R407C, R134a, and R22. It includes red, blue, and yellow hoses with 1/4"–1/4" connections and a length of 120 cm.

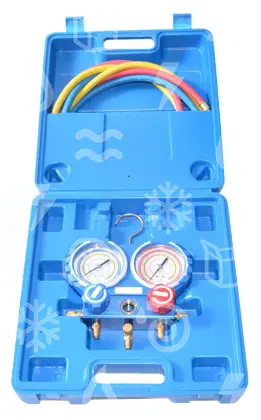

The manifold gauge set is equipped with Ø80 mm gauges. The low-pressure LP side has a pressure scale of -1 to 24 kg/cm²(bar), and the high-pressure HP side has a range of -1 to 30 kg/cm²(bar). The set is supplied in a plastic carrying case.

According to the supplementary data in the datasheet, the gauge has an accuracy class of 1.6, protective covering against damage, and a metal construction for increased durability.

Main advantages:

• 2-way service manifold for refrigeration and air conditioning systems
• Designed for refrigerants R404A, R407C, R134a, and R22
• Includes 3 hoses, each 120 cm long
• Hoses in red, blue, and yellow with 1/4"–1/4" connections
• Ø80 mm gauges
• Supplied in a plastic carrying case
• Metal construction and protective gauge covering according to the datasheet

Technical parameters:
Order code: 7023-00
Model designation: VMG-2-R22
Product type: manifold gauge set / manifold gauge
Brand: VALUE
Version: 2-way
Application: refrigeration systems and air conditioning
Refrigerants: R404A, R407C, R134a, R22
Gauge diameter: Ø80 mm
LP pressure scale: -1 ÷ 24 kg/cm²(bar)
HP pressure scale: -1 ÷ 30 kg/cm²(bar)
Hoses: red, blue, yellow
Hose connections: 1/4"–1/4"
Hose length: 120 cm
Packaging: plastic case
Gauge accuracy class: 1.6
Construction: metal
