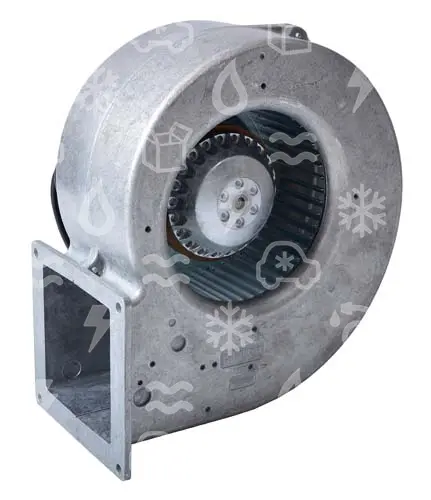

ENcentrifugal fan EBM PAPST, 146 mm, G2E146-DW07-01
G2E146-DW-07-01, centrifugal fan G2E146-DW07-01, EBM PAPST, 230V/1/50Hz, 1550 [rp/min], air flow: 475 [m3/h], motor capacitor: 3 [uF]
You need to be logged in to view information
| Order code 1: | 32 G2E146-DW07-01 |
| Order code 2: | G2E146-DW07-01 |
| VAT: | 0% |
| Unit: | pcs |
| Značka: | Radiální |
Description

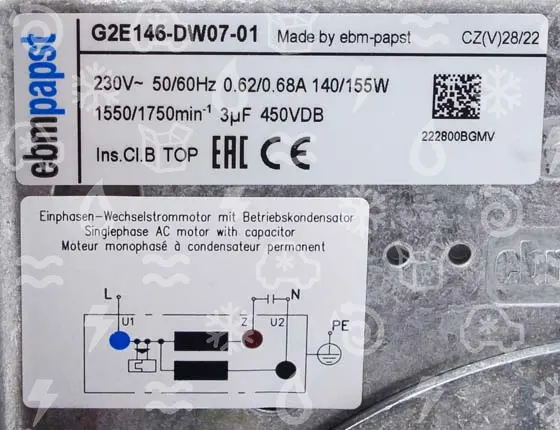

G2E146-DW-07-01, centrifugal fan G2E146-DW07-01, EBM PAPST, 230V/1/50Hz, 1550 [rp/min], air flow: 475 [m3/h], motor capacitor: 3 [uF], dimension: (Ø x height x width) 146 x 248 x 130 [mm], weight: 2,9 [kg]
Air Flow Volume [m3/h]: 475
Current [A]: 0.69
Input Power [W]: 140
Voltage: 230V
Max. temperature [°C]: 80
Protection IP: IP44
Motor type: AC
Technical specification
