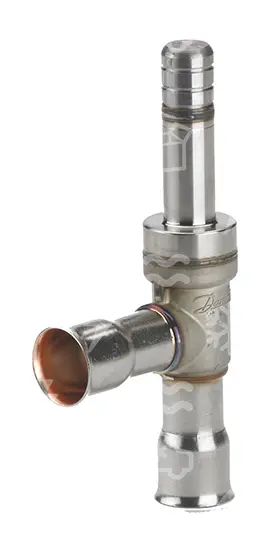

ENsolenoid valve Danfoss EVUL 5, R744 / CO2, NC, angle 3/8" ODF
032F9513, solenoid valve Danfoss EVUL 5, R744 / CO2, NC, connection: 3/8" angle ODF, Kv factor: 0,65 [m³/h], max. working pressure: 90[bar], medium temperature range max / min.: 105 / -40 [°C], weight: 0,071 [Kg]
You need to be logged in to view information
| Order code 1: | 32 032F9513 |
| Order code 2: | 032F9513 |
| VAT: | 0% |
| Unit: | pcs |
Description
032F9513, 032F9513, solenoid valve Danfoss EVUL 5, R744 / CO2, NC, connection: 3/8" angle ODF, Kv factor: 0,65 [m³/h], max. working pressure: 90[bar], medium temperature range max / min.: 105 / -40 [°C], weight: 0,071 [Kg]
| Gross weight | 0.102 Kilogram |
| Net weight | 0.071 Kilogram |
| Volume | 0.821 Liter |
| EAN | 5702428994897 |
| Actuator system [mm] | 9 mm |
| Ambient temperature | -40 - Coil dependend |
| Approval | EAC LLC CDC TYSK UR |
| Body material | Stainless steel |
| China RoHS compliance | Yes exceed limitations |
| Coil | No |
| Cv value [gal/min] | 0.8 gal/min |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.65 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.02 bar |
| MOPD[bar/psi] | Coil Dependend |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 16 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R23 R290 R32 R404A/R507A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A R600 R600a R744 |
| SCIP dossier no. | 16ab3d9e-ddf2-4401-873a-972ca0baafcf |
| Serviceable | No |
| Type | EVUL 5 |
| Type designation | Solenoid valve, Solder |
| UK RoHS compliance | Out of scope |
| UL approved refrigerants | R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R516A R744 |
