Description

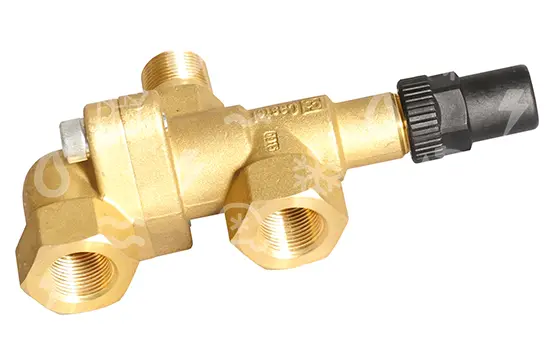

3032/66; CASTEL spindle valve 3032/66, connection: inlet: 3/4" NPT, outlet: 3/4" NPT
The 3032 series diverter valves function as a service valve for a pair of relief valves, allowing one to be used and the other to be excluded. This device allows the user to work on the disconnected valve, for periodic inspection or replacement, while the piping is fully functional and system safety is integral.
Accessory for use with the following ASHRAE 34:2019, Class A1 refrigerants:
HCFC (R22)
HFC (R134a, R404A, R407C, R410A, R507).
HFO (R1234ze)
HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B)
IN connection: 3/4" NPT
Connection OUT: 3/4" NPT
Kv [m³/h]: 9
PS [bar]: 80
TS [°C] min.: -40
TS [°C] max.: +150
