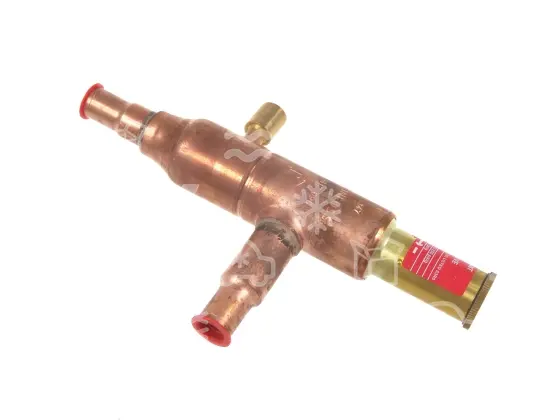

ENpressure regulator cendensing Danfoss KVR 12, solder 12 mm ODF
034L0096, pressure regulator condensing Danfoss KVR 12, connection solder: 12 [mm] ODF, regulating range: 5 - 17,5 [bar], factory
You need to be logged in to view information
| Order code 1: | 32 034L0096 |
| Order code 2: | 034L0096 |
| VAT: | 0% |
| Unit: | pcs |
| Značka: | DANFOSS |
Description
034L0096, pressure regulator condensing Danfoss KVR 12, connection solder: 12 [mm] ODF, regulating range: 5 - 17,5 [bar], factory setting: 10 [bar], maximal working pressure: 28 [bar], acess port: 1/4" shared valve, rated capacity [kW] at te = -10 [°C] a tk = +30 [°C]: R22 - 50,4 [kW], R134a: 47,3 [kW], R404A / R507: 36,6 [kW], R407C: 54,4 [kW]
| Gross weight | 0.392 Kilogram |
| Net weight | 0.338 Kilogram |
| Volume | 1.07 Liter |
| EAN | 5702428411592 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| China RoHS compliance | Yes |
| Equipment | Schrader valve access port |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Factory setting [bar] | 10 bar |
| Factory setting [psig] | 145 psig |
| Flow direction indicator | Engraved 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 12 mm |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Other RoHS documentation | EAEU RoHS |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| P band max. [bar] | 6.2 bar |
| P band max. [psi] | 90 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Condensing pressure regulator |
| Quantity per packing format | 12 pc |
| Rated cap. conditions [IMP] | Delta p hotgas=6 psi Delta p liquid=3 psi tcond=110 °F tevap=40 °F |
| Rated cap. conditions [SI] | Delta p hotgas=0.4 bar Delta p liquid=0.2 bar Offset=3 bar tcond=30 °C tevap=-10 °C |
| Rated cap. R134a, Hot gas [kW] | 11.6 kW |
| Rated cap. R134a, Hot gas [TR] | 3.03 TR |
| Rated cap. R22, Hot gas [kW] | 13.2 kW |
| Rated cap. R22, Hot gas [TR] | 4.13 TR |
| Rated cap. R404A/R507A [kW] | 36.6 kW |
| Rated cap. R404A/R507A [TR] | 8.2 TR |
| Rated cap. R407C, Hot gas [kW] | 14.3 kW |
| Rated cap. R407C, Hot gas [TR] | 4.5 TR |
| Rated cap.R404A/R507,Hot gas[k | 12 kW |
| Rated cap.R404A/R507,Hot gas[T | 3.27 TR |
| Rated capacity R134a [kW] | 47.3 kW |
| Rated capacity R134a [TR] | 11.8 TR |
| Rated capacity R22 [kW] | 50.4 kW |
| Rated capacity R22 [TR] | 12.7 TR |
| Rated capacity R407C [kW] | 54.4 kW |
| Rated capacity R407C [TR] | 13.8 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R1270 R134a R22 R290 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a |
| Regulation range [bar] [max] | 17.5 bar |
| Regulation range [bar] [min] | 5 bar |
| Regulation range [psig] Pe [max] | 254 psig |
| Regulation range [psig] Pe [min] | 73 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVR 12 |
| UK RoHS compliance | Out of scope |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B R516A |
