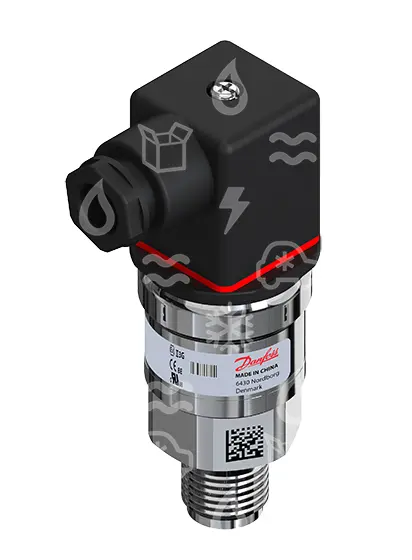

ENpressure transmitter Danfoss AKS 3000, 1 - 20 bar, connection G - 3/8"
Pressure range: -1 / 20 bar, connection 3/8", wattage 32 [V] DC [Max] / 9 [V] DC [Min], connection: G, Max output signal: 20 [mA], Min: 4 [mA], IP 65, mass: 0.168 [kg].
You need to be logged in to view information
| Order code 1: | 32 060G1049 |
| Order code 2: | 060G1049 |
| VAT: | 0% |
| Unit: | pcs |
| Značka: | DANFOSS |
Description
060G1049, pressure probe Danfoss AKS 3000, working range: -1 / 20 bar, connection 3/8", supply voltage 32 [V] DC [Max] / 9 [V] DC [Min], pressure connection type: G, output signal Max: 20[mA], Min: 4[mA], IP 65, weight: 0,168 [kg]
| Gross weight | 0.188 Kilogram |
| Net weight | 0.168 Kilogram |
| Volume | 0.424 Liter |
| EAN | 5702423099795 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX GOST POCC cUR |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 E227388 E31024 |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 40 °C |
| Compensated temp. range [°C] [min] | -30 °C |
| Compensated temp. range [°F] [max] | 104 °F |
| Compensated temp. range [°F] [min] | -22 °F |
| EEE category | 5 small equipment (any external dimension |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702423099795 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 33 bar |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | EN 837 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 20 bar |
| Pressure range [bar] [min] | -1 bar |
| Pressure range [psi] [max] | 290 psi |
| Pressure range [psi] [min] | -14.5 psi |
| Pressure reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 442fa760-b631-4ddb-a979-55b604269353 |
| SCIP dossier product name | Sensor AKS 3000 |
| Specification key | AKS 3000-9231-A1AB06-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Supply voltage [V] DC [min] | 9 V |
| Type | AKS 3000 |
| UK RoHS compliance | Out of scope |
