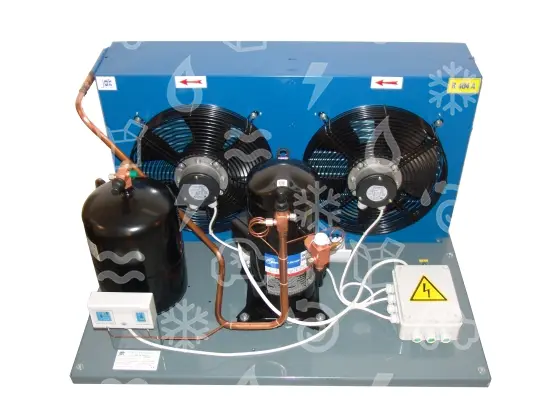

ENcondensing unit JDK, Copeland ZR40 K3E, HBP - R404a, 400 V // 32 JM-9-ZR.CE
*Warning - equivalent goods: 32 JM-9-ZR.CE will be delivered***
You need to be logged in to view information
| Order code 1: | 32 JHE-ZR-40 |
| VAT: | 0% |
| Unit: | pcs |
| Warranty for companies: | je to rozpis 20.6.2025 |
| Značka: | COPELAND |
Description
*Warning - equivalent goods: 32 JM-9-ZR.CE will be delivered***
JHE-ZR-40; condensing unit JDK JHE-ZR-40, HBP, 380-420V/3/50Hz, R407C, with compressor ZR40 K3E, cooling capacity: 7,25 [kW] in Te = 0°C and T11 = +32°C, fan: 2 x Ø350 [mm], air flow: 3600 [m3/h], connection: suction 7/8" (22 mm), discharge 1/2" (12 mm), liquid 1/2" (12 mm), receiver volume: 6,7 [l], sound pressure in 10 m: 77 [dBa], dimensions (w x d x h): 1000 x 700 x 560 [mm], weight: 90 [kg]
JHE-ZR-40; condensing unit JDK JHE-ZR-40, HBP, 380-420V/3/50Hz, R407C, with compressor ZR40 K3E, cooling capacity: 7,25 [kW] in Te = 0°C and T11 = +32°C, fan: 2 x Ø350 [mm], air flow: 3600 [m3/h], connection: suction 7/8" (22 mm), discharge 1/2" (12 mm), liquid 1/2" (12 mm), receiver volume: 6,7 [l], sound pressure in 10 m: 77 [dBa], dimensions (w x d x h): 1000 x 700 x 560 [mm], weight: 90 [kg]
Technical specification
Condensing units
| Application |
Application
HBP |
| Model |
Model
condensing unit |
| Refrigerant |
Refrigerant
R407C |
| Type of compressor |
Type of compressor
hermetic - piston |
| Power supply |
Power supply
380 - 420V |
| Frequency |
Frequency
50 Hz |
| Brand |
Brand
JDK |
| Cooling capacity regulation |
Cooling capacity regulation
ON/OFF |
