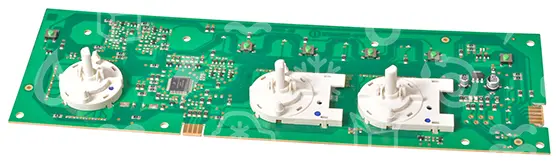

Control panel module ARISTON / INDESIT C00305980

Replacement ARISTON / INDESIT washing machine control panel electronic module with product code C00305980 and service number 482000023477.

The module is part of the washing machine user control interface. INDESIT appliance service diagrams list C00305980 as a control module positioned with the control panel components. It should therefore not be confused with the washing machine's main power/control module.

The complete appliance identification should be checked before ordering, as individual washing machine models may exist in several production versions.

Key benefits:

• electronic user control panel module
• product code C00305980
• service code 482000023477
• documented application in INDESIT washing machines
• compatible with selected IWC, IWSC and EWC series models

Technical specifications:
Part type: electronic control module
Position: washing machine control panel
Application: washing machine
Brand: ARISTON / INDESIT
Product code: C00305980
Service code: 482000023477

Suitable for models:

• INDESIT IWC 71252 C FR – 869990850280
• INDESIT IWC 61051 C ECO EU – 869990874570
• INDESIT IWC 61252 C FR – 869990875290
• INDESIT IWSC 61253 CECO EU.M – 769990952504
• INDESIT EWC61252WFRM – 869990952650
• INDESIT EWC71252WFR.M – 869990952660
• INDESIT EWC81482WFRM – 869990952690
• INDESIT IWC5125FR – 869990871900
• INDESIT IWC61052CFR – 869990875280
• INDESIT IWC91082ECOEU – 869990776570
• INDESIT IWDC6125FR – 869990624810
