Bosch Balay circular heating element 51-13-480484, 2500 W

The Bosch / Balay 51-13-480484 circular heating element is a replacement part intended for selected cookers. It serves as a heating element and is suitable for replacing the original damaged or non-functional heating element.

According to the supplied information, the element has a power rating of 2500 W, voltage of 230 V, and an inner diameter of 178 mm. The outer diameter is 194 mm, the length is 225 mm, and the design includes 1+1 bent terminals. When selecting, we recommend verifying compatibility according to the original heating element, order code 51-13-480484, dimensions, flange shape, and terminal type.

Main advantages:

• Replacement circular heating element for selected Bosch and Balay cookers
• Power rating of 2500 W and voltage of 230 V according to the supplied information
• Inner diameter 178 mm
• Outer diameter 194 mm
• 1+1 bent terminals
• Bracket: outward

Technical parameters:
Order code: 51-13-480484
Product type: circular cooker heating element
Compatible brand: Bosch, Balay
Power: 2500 W
Voltage: 230 V

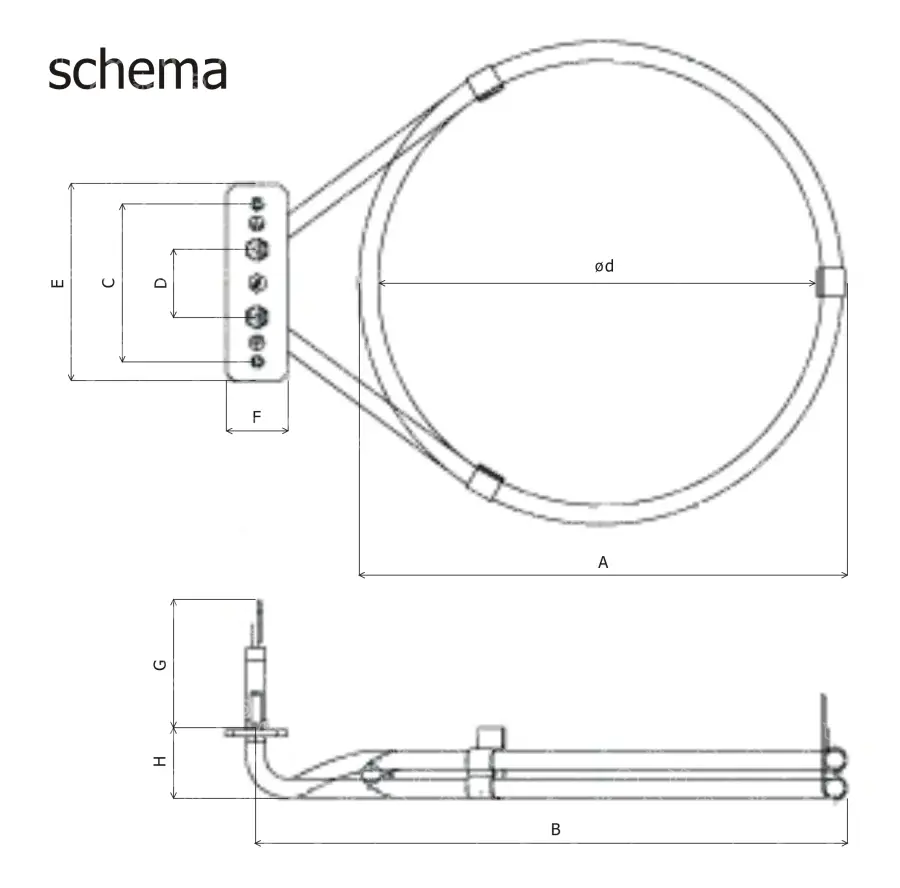

Inner diameter: 178 mm
Outer diameter A: 194 mm
Length B: 225 mm
Dimension C: 55 mm
Dimension D: 25 mm
Flange dimension E × F: 71 × 23 mm
Dimension G: 35 mm
Dimension H: 30 mm
Terminals: 1+1 bent
Bracket: outward
Application: replacement part for cookers
